More T19 Prototype Bits, Hy-Con Design Directions, TBNC Ultrastockification, etc.

Literally a hour before the TBNC match where the Model Pandora, and by extension the T19 running gear and the Hy-Con flywheel system, got its trial by fire... here I was cracking her open and pulling the processor card for a quick reflash. So that gave me an opportunity to get an image of what is inside the brick-like confines of the lower drive housing.


Of course lots of wiring, and of course you can see the end of the bolt motor. Less obvious is the controller board, mounted on some PVC standoffs (that will be part of the drive housing model as soon as the board is standardized). You can see the heatsink and distinctive purple PCB of the DRV8825 driver card for the bolt motor. Just to the left of that is the processor card, an Arduino Pro Mini which is my new favorite micro board (highly recommend). What you can't see under the wiring are the flywheel motor controllers, stuffed partially in between the stepper and the housing. The phase wires cross over from the left drive to the right motor and vice versa in front of the bolt motor with all those 2mm bullet connectors and no slack. A weirdo configuration. What a pain in the ass to deal with, and incredibly dependent on using the same Afro 20A controller to even fit.

Where these controllers are going to go in Production T19 is getting massively revisited, including accommodation for larger ones that might be required for certain configurations in the future. I never did like the "wasp-waisted" FDL-like look that was trying to happen, so that's... going away and the drive housing lines will be continued forward. The fly amps and phase wiring to the motors are going in that side space under big cover panels. This change will get rid of the need for breech wire covers/raceways and splicing the too-short stock motor phase leads in the process. It will also remove numerous items of bullshit from the lower drive housing and make it less packed in there.

I was reflashing to tweak delay schedules and heat up some low velocity cold start shots I was getting. Partial success (I get 150-160 ish first shots now), but no cigar. There shall never be; the process of tweaking timing schedules will continue ad infinitum.


Overall though, "Layla" did well. An absolute successful test, and a lot of fun to run this.

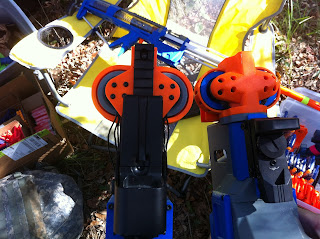

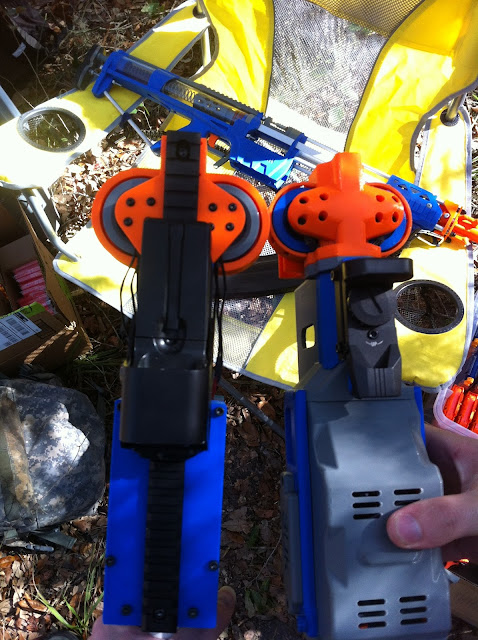

This was the first time a T19/Hy-Con and a FDL have been in proximity. Some have said my blaster looks FDLish. Yes, there was inspiration for doing a horizontal-cage device, and I kept the trademark visible wheel edges because I thought it was cool, but the designs are actually totally unrelated. Note how much bigger Hy-Con wheels are, for one.

The titanothere in the room? The drivetrain internals. I promise, I will show you the prototype's guts someday, but here's the deal, it is a completely different design than a FDL. There is no "drive plate" like a Rapidstrike box. The crank web is, just a crank web. It doesn't support the bolt/yoke, and isn't circular. Rails in the case parts are the only contact for supporting the bolt. Less friction, less inertia hooked to the motor, etc.

LOL those phase wires hanging out

Speaking of drivetrain? Direct drive FTMFW. Did super well. There are reasons I, as someone who has been playing since before flywheel was even a factor, am 100% down with stepper drives. Rock solid and super easy on darts and easily capable of the highest ROF anyone should be shooting at, even without any real envelope-pushing yet.

So now onto where Hy-Con is going and the internal debate I have about that.

Beta Model

When I designed the original Hy-Con System what seems like ages ago, the state of the art was different. People weren't shooting 200fps single stage. The top contenders were HBC Riot/OFP 41.5 with Riot wheels, and FDL cages. We were maxxing out at around 160fps average with excursions into 170s. I was angling for a system tuned to do 175 average, maybe 180, with 150 as a floor, and to do it using intentionally LOW crush. Thus, I made a possible blunder in futureproofing by not anticipating the possibility of needing to shoot more than 190fps for any reason so soon or that I would want to crank the crush up, and thus, not having enough surface speed out of my drive system's speed capability and wheel root diameter to support more than 190fps.

The "Hy-Con 1" is still well suited to the application it was meant for and I still admire the sort of conservative and balanced design that steered it from the get go. The V-Spec 2205 2350kv motors and 20A drives are nicely economical and compact and yet do a good enough job swinging these giant flywheels with decent dynamic performance, and if you're trying to shoot 175fps (or less for game rules), there isn't much point to more speed, either. I am very reluctant to outright ditch this setup. After all, T19 is not meant to do maximum-everything. It's meant to be a practical and competitive survivor.

At the same time, the Hy-Con's design basis has since mutated into awesomeness like Eclipse (200fps out of a Stryfe envelope), other similar Eclipsish experiments with other profiles have worked well to nearly identical results (Ultrasonic2 cages) and this giant dinosaur cage of mine is left in the cloud of dart dust from those two for lack of surface speed to support any further profile development. Oh, but my format has such potential in being so big, if I can get the tips to stay on the darts. I'm wondering if Hy-Con should have a more capable power system, eyeballing some 2306 2150kv motors and the use of 4S. Even more torque for faster startups plus support for up to 220fps. 4S on my current motors and the right high-eRPM capable controllers would be a tad speedy, but could support 250fps. There are motors, like the NTM 2836, that could net me even more torque and WAY more speed than either and are lower pole count to make those speeds easy on ESCs too. Oh the temptation.

However.

Something I already notice is that available/accurate dart ballistic envelopes are becoming a problem in the ultrastock band. Accufakes to begin with have utter garbage velocity retention, I'm at a loss why ultrastockers would want them. Waffles are substantially better, but my 175fps Hy-Con doesn't seem to shoot much if any farther than a 150fps FDL setup with them - just a bit more accurately, but that is another matter entirely.

What worth is that 25 extra fps on a full-length waffle dart that's already going 175fps anyway? I'm open that I might be getting tunnel vision for the chrono and being led astray from system design goals by the allure of 15-50fps that might not even wind up being practical to exploit from a system of this root diameter because of dart decapitations. Especially since a better set of these original 9.5 flywheels (this set are printy, rough and imbalanced and my old PLA protocage wheels were better) would probably do 180 average with waffle.



In any case I am ordering a bunch of 2205s and 20A Afros with intent to hold the course.

Of note in all this Hy-Con and 175fps and such discussion is that since I first fired a 'con at someone in anger, I... guess I'm officially fielding ultrastock blasters now. Where I have been fielding them is TBNC. Which was conceived as a superstock group and had 150fps velocity caps. Uh... About that. I feel kind of sheepish, but at least it was an agreed-upon and unopposed thing that the admin team just kind of simultaneously and flagrantly stomped on our own velocity rules. Ignore all the brushlessness for a sec and look in the background:


Yeah, that's a Caliburn, and it was used in combat last game.

I'm about to post the updated ruleset document. Change: Nix the 150fps bit. It's in the way and we don't want it there any more.

We're ultrastockified. It's official. Captain Slug, isn't that your dream? It's happening.

What I DON'T see is... nearly any practical change to gameplay. Last event saw stock and basic-upgraded Rival blasters and an older HvZ-specced Stryfe with AR and Artie aluminum smooth wheels and these were competitive just like my 130fps T17ACR would still easily be. Oh; it also saw SOCKS in the correct hands soundly destroy an entire team with ultrastock and high-end super gear.
Perhaps the moral is that player skill and luck always come before equipment, and a small amount of well laid out cover and balanced objective design from the get go makes a robust and fun game that armsracing can't derail; but I would call good game design a given. More or less, I have serious doubts that the "Super-to-Ultra" transition is anything other than a straight-up enhancement to superstock in any situation where >150fps can be tolerated. I don't think there is an accessibility problem nor a substantial change in game dynamics associated with it.

Saturday, December 16, 2017

T19 Prototype Build

I have rather insufficiently documented the progress of the Hy-Con flywheel system and its greater role in me going to clean-sheet blaster designs and exploring new tools like 3D printing, but that is in fact what is happening with me as of late. The main project here is called T19, following on from a T18 design that was put aside for later.

The key elements coming together here:

  • AC direct drive pusher, using a NEMA17 stepper motor, covered in the last post, as the drivetrain component.
  • the Hy-Con System as the ballistic component, including its associated motor/drive pairs.
  • My software package for integrated control of exactly such blasters.
  • A single-board modular controller architecture that just sort of designed itself as this project progressed.
  • A distinct design philosophy in terms of human factors/layout aspects that I found lacking or shoved aside in prior art. Examples are having a very tactile and consistent real trigger, a full length monolithic top rail, a trigger guard, conventional firearm-style trigger logic as opposed to FDL logic, etc.
  • A distinct feature/functionality philosophy best summarized as "You turn it on, you shoot it, and you turn it off". Rather than overcome varied roles with lots of options, controls and settings, I prefer versatility be inherent and all the software intelligence be buried under the hood. You shouldn't need, for example, selective fire. A combination of full auto mode only, superior trigger logic, good trigger hardware, and easily learned operator skill renders it one hundred percent objectively pointless.
Layouts vacillated for a while. T18 was to be akin to a "giant mutant alien Stryfe" - vertical plane cage and vertical plane drivetrain. It is still in the works... eventually. I just decided not to prototype and do Hy-Con field testing with it, but to design a simpler, cruder test-mule, and that, is T19.

The inspirations are:
  • The FDL series (the horizontal flywheel orientation).
  • Old school electropneumatic paintball markers, like the PVI "shoebox" Shocker and ICD Bushmaster 2000, for the packaging approach used to accommodate the NEMA 17 bolt motor and the electronics package while maintaining a clean top profile:

So I got CADding. Here are some models for printed parts (note magwell is a dummy part and is not used):


I had 3DK print these for me, since I am a lazy SOB and haven't built my own printer yet. That's next.

And it came together, with a bunch of handmade PVC buildup parts. I have referred to this design as "Model Pandora" for quite some time and it is unique as a testbed and meant only for that more or less. I'll just let the images talk for the most part.


On "Delay change per step" pitfall and salient features of the stepper motor bolt drive.

Time to geek out about motor technology a bit. As a starting point an excerpt from FDL-2 non-plus firmware:

void StepRange(int stepperPin, double startDelay, double endDelay, double steps){

    double delayChangePerStep = (endDelay - startDelay) / steps;

    double loopDelay = startDelay;

    for (int index = 0 ; index < steps ; index += 1) {
        digitalWrite(stepperPin, HIGH);
        delayMicroseconds(loopDelay / 2);
        digitalWrite(stepperPin, LOW);
        delayMicroseconds(loopDelay / 2);

        loopDelay += delayChangePerStep;
    }
}
Okay, we've all heard the usual runaround about open-loop stepper drives for feeding darts in nerf guns. The one about too much torque decay at high speeds to run reliably at higher ROF and all that. Well, this function above is right at the core of the matter, and no offense, there's a pretty big and apparently very common blunder in it. Angular acceleration of a synchronous motor can be expressed as commutations per second squared. Steps per second per second; or if dealing with the period of a signal, delay change per second. Not per step - per second. The motor commutation frequency is increasing, so "delay change per step" doesn't generate anything resembling a linear velocity/constant acceleration profile. Rather, it gives linearly increasing acceleration, and quadratically increasing velocity.

That is the very LAST thing we want for actually driving something, to accelerate harder as speed climbs and the torque curve drops off.

How about a graphic long timescale example of what this is doing:


https://www.youtube.com/watch?v=25XOH7JPU5w (Check the code in the description!)


Tuesday, June 27, 2017

PSA - Turnigy XK20 inrunner shaft diameter change NOW 2.3MM. DO NOT BUY


Ordered two Turnigy XK2040-4500kv motors from HobbyKing US warehouse recently. I had planned to use these to run the HBC Riot Cage, as well as reviewing them as a 20mm inrunner option for SSS flywheel systems.

However, there was a complication.

Specs on listing (note 2.0mm shaft, in agreement with the 2.0mm shaft these motors had in the past):


Motors received:


2.3mm nominal with a flat. God damnit Hextronik you have failed me.

I am RMA-ing these things. It's a shame, they are nice motors with what should be perfect specs for this application, and I really wanted to give them a go.

Instead I am going either with another pair of GWS GWBLM005, which will hopefully have better bearings than my last noisy pair of them, or maybe I will give the Hobbywing EZRun 2030 18t (5200kv) a try. After a lot of digging I have had a hell of a time finding any other 20mm motors with 2.0mm shaft ends. A real shame about these Turnigy.

Monday, June 19, 2017

Overview/General Build Log: Prometheus

Prometheus: an electropneumatic, magazine-fed, fully automatic, open-bolt, 12.7x36mm, high-velocity capable dart blaster development project. Or you may know it as an HPA engine design, or as one of those new "NIC" blasters that isn't technologically stuck in 1995.

This is Prometheus.



Combat Tested: Hooligan Flywheels

(Disclaimer: I was sent free samples.)

This is Hooligan Blaster Company's first flywheel product.


This is a CNC machined, Delrin, smooth, mild-concave (Artifactoid profile) superstock-standard flywheel in the 35mmOD class.


Sunday, June 18, 2017

Project Hy-Con: A flywheel geometry development effort [Part 1 of who the hell knows]

One of the many recent discussions of flywheel physics sparked a realization about the design basis of a flywheel profile most elemental, and in hindsight, plainly obvious at least in theory. It involves concavity. So let's talk about concavity and ask the most basic question there is.

What the hell is the purpose of a concave flywheel profile, anyway?

(Be warned, theory ahead, but there are some cool things later on!)


Wednesday, June 14, 2017

Brushless Inrunner AR Cage Continued, and Project T17

Where did I leave off with Project ACR? Here, I believe.



So the last image showed what was about to happen, more or less. Well, it happened. But not after a bit of bug hunting.


Saturday, June 3, 2017

Mini-Review Raytheon Waffle Dart

I received one sample clip of this dart from dkdavid721.


Tip diameter: 0.460" front, 0.490" rear
Foam OD: dart 1 0.488 - 0.502", dart 2 0.485 - 0.503"
Length: dart 1 2.892" (73.64mm), dart 2 2.875" (73.02mm)



For reference:
  • Mengun Red, tip diameter 0.405 front/0.462 rear, foam OD 0.487 - 0.513", length 2.884
  • Gen3 koosh (yellow foam), tip diameter 0.483, foam diameter 0.510 - 0.519", length 2.877
Chrono shots: T3.1, full length RS inner barrel (straight flute), Hooligan flywheels: 120.0, 129.8, 123.6, 125.1, 127.4, 120.1, 114.4, 123.1, 117.9, 123.5



Notes: A very, very accurate dart, easily killing the koosh hands down. These things are lasers with groups under 18" at 45 feet range and 120fps. The newer version of tip that Raytheon sells has a shorter core than the original waffle tip and is made of a slightly stiffer compound. Also, the tip gluing is improved over the "Ekind" era waffle dart.

Tip failures should not be an issue with these and flywheel performance and consistency is improved over the Gen 1 waffle dart. These shoot as clean as Mengun red. However, the foam is still small bore, coarse celled and not that great of quality and velocity retention is still a bit poor.

Verdict: Good stuff. I'm buying several cases of this dart right now. However, I do recommend using it with at least a modern SSS flywheel gun equipped with a high crush flywheel system and a short barrel.

Also, even Hooligans/other Artifactoids and similar class of flywheels (like Worker and CC Cyclone) in 43.5mm cages, which work well for fatter-foamed darts, may not give the correct crush ratio to be optimal on these, due to the small bore foam. They are worth a shot with a combination of same flywheels and a crush-boosting cage.

Saturday, May 20, 2017

Brushless Artifact Red Cage, Part 1

Project ACR: An exploration of the application of brushless motor technology to the Superstock Standard format.



Sunday, March 26, 2017

In which a point is made about game design being a game, and an argument is made that specials are here to stay

I've been experimenting with making Youtube videos - mostly to see if I can get a point across in less time than it would take me to write an equivalent text post. Other than my (hopefully not too) annoying voice, this one seems to have turned out fairly well:


This video has already been linked on reddit, so I'm posting it here mostly for the sake of completeness.

Saturday, March 18, 2017

Metapocalypse Now: a long time coming HvZ Rant.

Starting posts is always hard, but let's drop the clutch on this motherfucker. Okay, you probably know Rob Lehr, the Thunderdome documentary dude. Maybe you have seen his rambling semi-coherent video, maybe not, but it is a good catalyst for this post.
